Jsp+Servlet实现文件上传下载 文件列表展示（二）

接着上一篇讲：
Jsp+Servlet实现文件上传下载（一）--文件上传

本章来实现一下上传文件列表展示，同时优化了一下第一章中的代码。

废话少说，上代码

mysql创建附件表

DROP TABLE tbl_accessory;

CREATE TABLE tbl_accessory
(
 id INT AUTO_INCREMENT PRIMARY KEY,
 file_name VARCHAR(500),
 file_size DOUBLE(10,2),
 file_ext_name VARCHAR(100),
 file_path VARCHAR(2000)
)
;

SELECT * FROM tbl_accessory;

DELETE FROM tbl_accessory;

创建附件实体类

package entity.upload;

/**
 * 附件实体类
 *
 * @author xusucheng
 * @create 2017-12-29
 **/
public class EntityAccessory {
 private int id;
 private String fileName;
 private double fileSize;
 private String file_ext_name;
 private String filePath;

 public int getId() {
  return id;
 }

 public void setId(int id) {
  this.id = id;
 }

 public String getFileName() {
  return fileName;
 }

 public void setFileName(String fileName) {
  this.fileName = fileName;
 }

 public double getFileSize() {
  return fileSize;
 }

 public void setFileSize(double fileSize) {
  this.fileSize = fileSize;
 }

 public String getFile_ext_name() {
  return file_ext_name;
 }

 public void setFile_ext_name(String file_ext_name) {
  this.file_ext_name = file_ext_name;
 }

 public String getFilePath() {
  return filePath;
 }

 public void setFilePath(String filePath) {
  this.filePath = filePath;
 }
}

创建DBUtil工具类

package util;

import java.sql.*;
import java.io.InputStream;
import java.util.Properties;

/**
 * 数据库工具类
 *
 * @author xusucheng
 * @create 2017-11-18
 **/
public class DBUtil {
 //定义链接所需要的变量
 private static Connection con = null;
 private static PreparedStatement ps = null;
 private static ResultSet rs = null;

 //定义链接数据库所需要的参数
 private static String url = "";
 private static String username = "";
 private static String driver="";
 private static String password="";

 //定义读取配置文件所需要的变量
 private static Properties pp = null;
 private static InputStream fis = null;

 /**
  * 加载驱动
  */
 static {
  try {
   //从dbinfo.properties配置文件中读取配置信息
   pp = new Properties();
   fis = DBUtil.class.getClassLoader().getResourceAsStream("db.properties");

   pp.load(fis);
   url = pp.getProperty("url");
   username = pp.getProperty("username");
   driver=pp.getProperty("driver");
   password=pp.getProperty("password");

   //加载驱动
   Class.forName(driver);

  } catch (Exception e) {
   System.out.println("驱动加载失败！");
   e.printStackTrace();
  } finally {
   try {
    fis.close();
   } catch (Exception e) {
    e.printStackTrace();
   }

   fis = null; //垃圾回收自动处理
  }

 }

 /**
  * 得到Connection链接
  * @return Connection
  */
 public static Connection getConnection() {

  try {
   //建立连接
   con = DriverManager.getConnection(url, username, password);

  } catch (Exception e) {
   System.out.println("数据库链接失败！");
   e.printStackTrace();
  }

  return con;
 }

 /*public DBUtil(String sql){
  try {
   ps = getConnection().prepareStatement(sql);//准备执行语句
  } catch (Exception e) {
   e.printStackTrace();
  }
 }

 public void close() {
  try {
   con.close();
   ps.close();
  } catch (SQLException e) {
   e.printStackTrace();
  }
 }*/

 /**
  * 统一的资源关闭函数
  * @param rs
  * @param ps
  * @param con
  */
 public static void close(ResultSet rs,Statement ps, Connection con){

  if(rs != null) {
   try {
    rs.close();
   } catch (Exception e) {
    e.printStackTrace();
   }
  }
  if(ps != null) {
   try {
    ps.close();
   } catch (Exception e) {
    e.printStackTrace();
   }
  }
  if(con != null) {
   try {
    con.close();
   } catch (Exception e) {
    e.printStackTrace();
   }
  }
 }

}

创建附件实体DAO类

package dao.upload;

import entity.upload.EntityAccessory;
import util.DBUtil;

import java.math.BigDecimal;
import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;

/**
 * 附件上传DAO
 *
 * @author xusucheng
 * @create 2017-12-29
 **/
public class AccessoryDao {
 public static void add(EntityAccessory entity) {
  Connection conn = DBUtil.getConnection();
  String sql = "insert into tbl_accessory(file_name,file_size,file_ext_name,file_path) values(?,?,?,?)";
  try {
   PreparedStatement ps = conn.prepareStatement(sql);
   ps.setString(1, entity.getFileName());
   ps.setDouble(2, entity.getFileSize());
   ps.setString(3, entity.getFile_ext_name());
   ps.setString(4, entity.getFilePath());
   ps.execute();
   //conn.commit();

   DBUtil.close(null, ps, conn);
  } catch (SQLException e) {
   e.printStackTrace();
  }
 }

 public static List<EntityAccessory> list() {
  Connection conn = DBUtil.getConnection();
  String sql = "select id,file_name,file_size,file_ext_name,file_path from tbl_accessory";
  List<EntityAccessory> accessoryList = new ArrayList<>();
  try {
   PreparedStatement ps = conn.prepareStatement(sql);
   ResultSet rs = ps.executeQuery();

   while (rs.next()) {
    EntityAccessory entity = new EntityAccessory();
    entity.setId(rs.getInt("id"));
    entity.setFileName(rs.getString("file_name"));
    entity.setFileSize(new BigDecimal(rs.getDouble("file_size") / 1024).setScale(2, BigDecimal.ROUND_HALF_UP).doubleValue());
    entity.setFile_ext_name(rs.getString("file_ext_name"));
    entity.setFilePath(rs.getString("file_path"));
    accessoryList.add(entity);
   }

   DBUtil.close(rs, ps, conn);
  } catch (SQLException e) {
   e.printStackTrace();
  }

  return accessoryList;

 }

 public static void remove(int id) {
  Connection conn = DBUtil.getConnection();
  String sql = "delete from tbl_accessory where id=?";
  try {
   PreparedStatement ps = conn.prepareStatement(sql);
   ps.setInt(1,id);
   ps.execute();
   //conn.commit(); mysql默认开启了autocommit

   DBUtil.close(null,ps,conn);
  } catch (SQLException e) {
   e.printStackTrace();
  }
 }
}

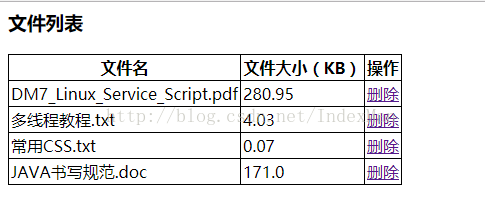

创建list.jsp列表页面

<html>
<head>
 <title>上传文件列表</title>
</head>
<body>

<h3>文件列表</h3>
<table border="1" bordercolor="#000000" cellspacing="0" cellpadding="2">
 <tr>
  <th>文件名</th>
  <th>文件大小（KB）</th>
  <th>操作</th>
 </tr>
 <c:if test="${not empty accessoryList}">
  <c:forEach items="${accessoryList}" var="acc">
   <tr>
    <td>${acc.fileName}</td>
    <td>${acc.fileSize}</td>
    <td><a href="">删除</a></td>
   </tr>
  </c:forEach>
 </c:if>
</table>
</body>
</html>

创建展示列表Servlet:listUploadedFilesServlet

package servlet.upload;

import dao.upload.AccessoryDao;
import entity.upload.EntityAccessory;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.List;

/**
 * 返回已上传文件列表
 *
 * @author xusucheng
 * @create 2017-12-29
 **/

@WebServlet("/listUploadedFiles")
public class listUploadedFilesServlet extends HttpServlet {
 @Override
 protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
  //获取文件列表
  List<EntityAccessory> accessoryList = AccessoryDao.list();
  request.setAttribute("accessoryList", accessoryList);

  request.getRequestDispatcher("pages/upload/list.jsp").forward(request, response);
 }

 @Override
 protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
  doPost(request, response);
 }
}

增加error.jsp显示上传失败信息

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
 <title>上传错误页面</title>
</head>
<body>

<h3>上传失败：</h3>
<c:if test="${not empty errorMessage}">
 <%--<input type="text" id="errorMessage" value="${errorMessage}" disabled="disabled">--%>
 <h4>${errorMessage}</h4>
</c:if>


</body>
</html>

优化了第一章中的上传控制器

package servlet.upload;

import dao.upload.AccessoryDao;
import entity.upload.EntityAccessory;
import org.apache.commons.fileupload.FileItem;
import org.apache.commons.fileupload.FileUploadBase;
import org.apache.commons.fileupload.FileUploadException;
import org.apache.commons.fileupload.ProgressListener;
import org.apache.commons.fileupload.disk.DiskFileItemFactory;
import org.apache.commons.fileupload.servlet.ServletFileUpload;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.util.Calendar;
import java.util.Iterator;
import java.util.List;
import java.util.UUID;

/**
 * 处理文件上传
 *
 * @author xusucheng
 * @create 2017-12-27
 **/
@WebServlet("/UploadServlet")
public class UploadServlet extends HttpServlet {
 @Override
 protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
  //设置文件上传基本路径
  String savePath = this.getServletContext().getRealPath("/WEB-INF/uploadFiles");
  //设置临时文件路径
  String tempPath = this.getServletContext().getRealPath("/WEB-INF/tempFiles");
  File tempFile = new File(tempPath);
  if (!tempFile.exists()) {
   tempFile.mkdir();
  }

  //定义异常消息
  String errorMessage = "";
  //创建file items工厂
  DiskFileItemFactory factory = new DiskFileItemFactory();
  //设置缓冲区大小
  factory.setSizeThreshold(1024 * 100);
  //设置临时文件路径
  factory.setRepository(tempFile);
  //创建文件上传处理器
  ServletFileUpload upload = new ServletFileUpload(factory);
  //监听文件上传进度
  ProgressListener progressListener = new ProgressListener() {
   public void update(long pBytesRead, long pContentLength, int pItems) {
    System.out.println("正在读取文件： " + pItems);
    if (pContentLength == -1) {
     System.out.println("已读取： " + pBytesRead + " 剩余0");
    } else {
     System.out.println("文件总大小：" + pContentLength + " 已读取：" + pBytesRead);
    }
   }
  };
  upload.setProgressListener(progressListener);

  //解决上传文件名的中文乱码
  upload.setHeaderEncoding("UTF-8");
  //判断提交上来的数据是否是上传表单的数据
  if (!ServletFileUpload.isMultipartContent(request)) {
   //按照传统方式获取数据
   return;
  }

  //设置上传单个文件的大小的最大值，目前是设置为1024*1024字节，也就是1MB
  //upload.setFileSizeMax(1024 * 1024);
  //设置上传文件总量的最大值，最大值=同时上传的多个文件的大小的最大值的和，目前设置为10MB
  upload.setSizeMax(1024 * 1024 * 10);

  try {
   //使用ServletFileUpload解析器解析上传数据，解析结果返回的是一个List<FileItem>集合，每一个FileItem对应一个Form表单的输入项
   List<FileItem> items = upload.parseRequest(request);
   Iterator<FileItem> iterator = items.iterator();
   while (iterator.hasNext()) {
    FileItem item = iterator.next();

    //判断jsp提交过来的是不是文件
    if (item.isFormField()) {
     errorMessage = "请提交文件！";
     break;
    } else {
     //文件名
     String fileName = item.getName();
     if (fileName == null || fileName.trim() == "") {
      System.out.println("文件名为空！");
     }
     //处理不同浏览器提交的文件名带路径问题
     fileName = fileName.substring(fileName.lastIndexOf("\\") + 1);
     //文件大小
     Long fileSize = item.getSize();
     //文件扩展名
     String fileExtension = fileName.substring(fileName.lastIndexOf(".") + 1);
     //判断扩展名是否合法
     if (!validExtension(fileExtension)) {
      errorMessage = "上传文件非法！";
      item.delete();
      break;
     }
     //获得文件输入流
     InputStream in = item.getInputStream();
     //得到保存文件的名称
     String saveFileName = createFileName(fileName);
     //得到文件保存路径
     String realFilePath = createRealFilePath(savePath, saveFileName);
     //创建文件输出流
     FileOutputStream out = new FileOutputStream(realFilePath);
     //创建缓冲区
     byte buffer[] = new byte[1024];
     int len = 0;
     while ((len = in.read(buffer)) > 0) {
      //写文件
      out.write(buffer, 0, len);
     }
     //关闭输入流
     in.close();
     //关闭输出流
     out.close();
     //删除临时文件
     item.delete();
     <span>//将上传文件信息保存到附件表中
     EntityAccessory entity = new EntityAccessory();
     entity.setFileName(fileName);
     entity.setFileSize(fileSize);
     entity.setFile_ext_name(fileExtension);
     entity.setFilePath(realFilePath);
     AccessoryDao.add(entity);</span>
    }

   }

  } catch (FileUploadBase.FileSizeLimitExceededException e) {
   e.printStackTrace();
   errorMessage = "单个文件超出最大值！！！";
  } catch (FileUploadBase.SizeLimitExceededException e) {
   e.printStackTrace();
   errorMessage = "上传文件的总的大小超出限制的最大值！！！";
  } catch (FileUploadException e) {
   e.printStackTrace();
   errorMessage = "文件上传失败！！！";
  } finally {
   <span>if (!"".equals(errorMessage)) {
    request.setAttribute("errorMessage", errorMessage);
    request.getRequestDispatcher("pages/upload/error.jsp").forward(request, response);
   } else {
    response.sendRedirect("listUploadedFiles");
   }</span>

  }

 }

 @Override
 protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
  doGet(request, response);
 }

 private boolean validExtension(String fileExtension) {
  String[] exts = {"jpg", "txt", "doc", "pdf"};
  for (int i = 0; i < exts.length; i++) {
   if (fileExtension.equals(exts[i])) {
    return true;
   }

  }

  return false;
 }

 private String createFileName(String fileName) {
  return UUID.randomUUID().toString() + "_" + fileName;
 }

 /**
  * 根据基本路径和文件名称生成真实文件路径，基本路径\\年\\月\\fileName
  *
  * @param basePath
  * @param fileName
  * @return
  */
 private String createRealFilePath(String basePath, String fileName) {
  Calendar today = Calendar.getInstance();
  String year = String.valueOf(today.get(Calendar.YEAR));
  String month = String.valueOf(today.get(Calendar.MONTH) + 1);


  String upPath = basePath + File.separator + year + File.separator + month + File.separator;
  File uploadFolder = new File(upPath);
  if (!uploadFolder.exists()) {
   uploadFolder.mkdirs();
  }

  String realFilePath = upPath + fileName;

  return realFilePath;
 }
}

测试效果截图

下集预告：实现附件删除功能！

以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持。
