nestjs实现图形校验和单点登录的示例代码

目录

• 实现图形校验和单点登录
• 前置条件
• 安装
• Module
• service
• 如何生成图形验证码
• 如何使用 session
• 接入 mongose

实现图形校验和单点登录

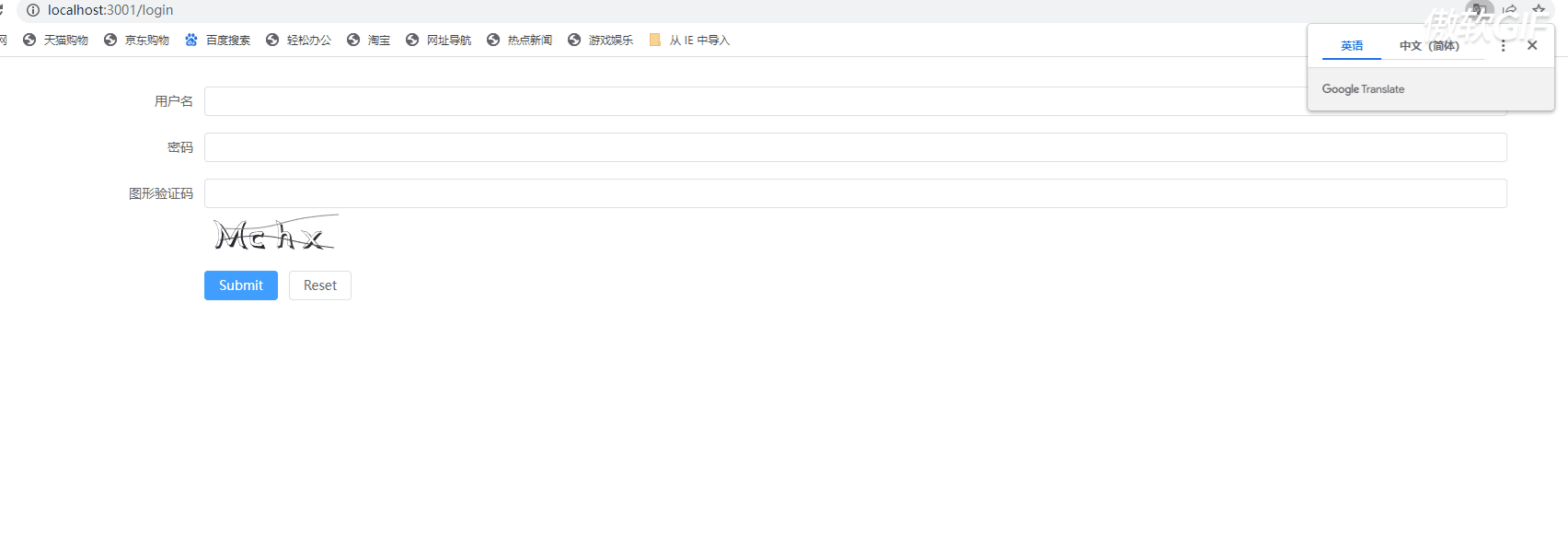

效果图

前置条件

学习一下 nest

安装

新建项目

 npm i -g @nestjs/cli
 nest new project-name
 npm run start:dev //启动服务

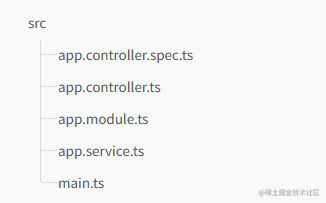

目录结构

controllers

负责处理传入的请求并将响应返回给客户端。(定义路由等)

import { Controller, Get } from '@nestjs/common';
@Controller()
export class AppController {
  constructor() {}
  @Get()
  getHello(): string {
    return 'hello world';
  }
}

controllers 常用装饰器

常用装饰器

@Controller(path)@Get(path)@Post(path)@Request(), @Req()@Response(), @Res()@Session()@Param(key?: string)@Body(key?: string)@Query(key?: string)@Headers(name?: string)定义 root 路径定义 get 请求和路径定义 post 请求和路径请求体(req)响应体(res)session获取 req.params 参数获取 req.body 参数获取 req.query 参数获取 req.headers 参数

Module

@Global()
@Module({
  providers: [MyService],
  exports: [MyService],
})
export class AppModule {}

• providers 属性用来声明模块所提供的依赖注入 (DI) 提供者，它们将在整个模块中共享。
• exports 属性用于导出模块中的提供者以供其他模块使用。
• global 标识符用于创建一个全局模块。在任何地方都可以使用 @Inject() 装饰器来注入其提供者。
• imports 选项用于引入其他模块中提供的依赖关系。

service

import { Injectable } from '@nestjs/common';
@Injectable()
export class AppService {
  getHello(): string {
    return 'Hello World!';
  }
}

业务逻辑具体实现

如何生成图形验证码

需要用到 svg-captcha 这个库

npm i svg-captcha

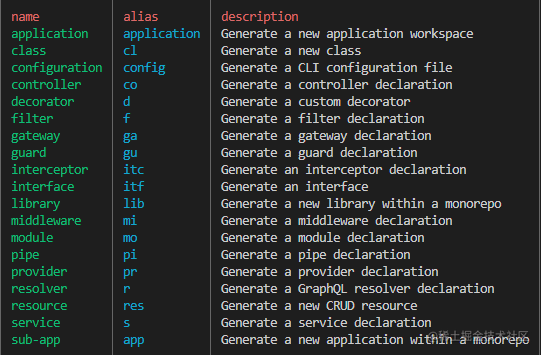

nest 命令行创建一个 captcha 模块nest g res captchanest 命令行:

import { Controller, Get, Response, Session } from '@nestjs/common';
import * as svgCaptcha from 'svg-captcha';
@Controller('captcha')
export class CaptchaController {
  @Get()
  async getCaptcha(@Response() res, @Session() session) {
    const captcha = svgCaptcha.create({
      size: 4,
      noise: 2,
    });
    session.captcha = captcha.text;
    res.type('svg');
    res.send(captcha.data);
  }
}

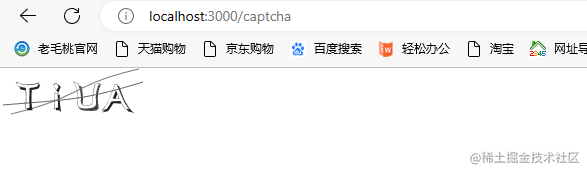

通过 session 将当前会话的 captcha 存起来此时能通过：http://localhost:3000/captcha查看到效果图

如何使用 session

npm i express-session
npm i -D @types/express-session

并且再 main.ts 中引入

import * as session from 'express-session';
// somewhere in your initialization file
app.use(
  session({
    secret: 'my-secret',
    resave: false,
    saveUninitialized: false,
  }),
);

接入 mongose

在本机下载 mogodb mogodb 官网下载

安装 mongoose

npm install --save mongoose

在 app.modele 中引入

import { Module } from '@nestjs/common';
import { MongooseModule } from '@nestjs/mongoose';
import { AppController } from './app.controller';
import { AppService } from './app.service';
@Module({
  imports: [MongooseModule.forRoot('mongodb://127.0.0.1:27017/nest')],
  controllers: [AppController],
  providers: [AppService],
})
export class AppModule {}

创建 schemas

import { Document } from 'mongoose';
import * as mongoose from 'mongoose';
export interface User {
  account: string;
  password: string;
}
export interface UserDoc extends User, Document {}
export const UserSchema = new mongoose.Schema({
  password: { type: String, required: true },
  account: {
    type: String,
    required: true,
    unique: true,
  },
});
export const UserModel = mongoose.model<UserDoc>('User', UserSchema);

创建 auth 模块

nest g res auth

实现注册和登录方法controller

import {
  Controller,
  Get,
  Body,
  Post,
  UseInterceptors,
  Req,
  Request,
  Res,
} from '@nestjs/common';
import { AuthService } from './auth.service';
import { CreateUserDto } from './dto/index';
import { ApiCreatedResponse } from '@nestjs/swagger';
import { CaptchaMiddleware } from 'src/middleware/captcha-middleware/captcha-middleware.middleware';
@Controller('auth')
export class AuthController {
  constructor(private readonly authService: AuthService) {}
  @ApiCreatedResponse({
    description: 'The record has been successfully created.',
    type: CreateUserDto,
  })
  @Post('register')
  async created(@Body() data: CreateUserDto) {
    const user = await this.authService.created(data);
    return user;
  }
  @UseInterceptors(CaptchaMiddleware)
  @Post('login')
  async login(
    @Body() data: CreateUserDto,
    @Req() request: Request,
    @Res() res,
  ) {
    const user = await this.authService.login(data, request);
    res.sendResponse(user);
  }
}

引入uuid 生成随机数和userId做键值对映射,为单点登录打下基础。

引入jwt 生成token进行校验。

import { Injectable, UnauthorizedException } from '@nestjs/common';
import { JwtService } from '@nestjs/jwt';
import mongoose, { Model } from 'mongoose';
import { InjectModel } from '@nestjs/mongoose';
import { UserDoc } from '../schemas/user.schema';
import { loginMapDoc } from '../schemas/login.mapping';
import { CreateUserDto } from './dto/index';
import { v4 as uuid } from 'uuid';
@Injectable()
export class AuthService {
  constructor(
    private jwtService: JwtService,
    @InjectModel('user') private readonly userModel: Model<UserDoc>,
    @InjectModel('loginmapModel')
    private readonly loginmapModel: Model<loginMapDoc>,
  ) {}
  async created(data: CreateUserDto) {
    const user = await new this.userModel(data);
    return user.save();
  }
  async login(data: any, req) {
    const { account, password, code } = data;
    if (code.toLocaleLowerCase() !== req.session?.captcha.toLocaleLowerCase()) {
      return {
        code: 400,
        message: '验证码错误',
      };
    }
    const user = await this.userModel.findOne({
      account,
      password,
    });
    if (!user) {
      throw new UnauthorizedException();
    }
    const loginId = uuid();
    const payload = {
      userId: user.id,
      username: user.account,
      loginId: loginId,
    };
    const token = this.jwtService.sign(payload);
    const foundCollection = await mongoose.connection.collections[
      'loginmapModel'
    ];
    if (!foundCollection) {
      // 如果该 collection 不存在，则创建它
      await new this.loginmapModel();
      console.log('新建成功');
    }
    await this.loginmapModel.findOneAndUpdate(
      { userId: user.id },
      { userId: user.id, loginId },
      { upsert: true, new: true, runValidators: true },
    );
    return { token, loginId };
  }
  async viladate(data: any) {
    const { userId, loginId } = data;
    const map = await this.loginmapModel.findOne({ userId, loginId });
    return loginId == map.loginId;
  }
}

最后创建一个guard,对用户是否登录进行拦截判断

nest g gu middleware/auth

import {
  CanActivate,
  ExecutionContext,
  Injectable,
  Request,
  UnauthorizedException,
} from '@nestjs/common';
import { Reflector } from '@nestjs/core';
import { JwtService } from '@nestjs/jwt';
import { jwtConstants } from '@/auth/constants';
import { AuthService } from '@/auth/auth.service';
@Injectable()
export class AuthGuardGuard implements CanActivate {
  constructor(
    private jwtService: JwtService,
    private reflector: Reflector,
    private authService: AuthService,
  ) {}
  async canActivate(context: ExecutionContext): Promise<boolean> {
    const skipAuth = this.reflector.get<boolean>(
      'skipAuth',
      context.getHandler(),
    ); // 返回 Boolean 值或 undefined，即是否跳过校验
    if (skipAuth) {
      return true;
    }
    const request: Request = context.switchToHttp().getRequest();
    const token = this.extractTokenFromHeader(request);
    if (!token) {
      throw new UnauthorizedException();
    }
    try {
      const payload = await this.jwtService.verifyAsync(token, {
        secret: jwtConstants.secret,
      });
      const isRemoteLogin = await this.authService.viladate(payload);
      console.log(isRemoteLogin, 'payload', payload);
      if (!isRemoteLogin) {
        throw new UnauthorizedException('异地登录');
      }
      //
