Oracle 11.2.0.4
近期有一个日志库,占用了比较多的空间,需要将历史的清理,然后收缩空间。
如下图所示,4T的空间已经差不多用完。
首先想到的是清理掉超过半年的数据,然后resize 表空间。
因为业务的表是 tablename_yearmonth格式,例如 log_202204,每个月一个表,所以直接进行truncate即可。
找到大表:
select t.segment_name,t.BYTES/1024/1024/1024 GB,t.segment_type from user_segments t where t.segment_type in ("TABLE","TABLE PARTITION") order by nvl(t.BYTES/1024/1024/1024,0) desc;
truncate 大表:
select "truncate table "|| t.TABLE_NAME ||";" from user_tables t where t.TABLE_NAME like "LOG%";
select a.tablespace_name, a.file_name, a.totalsize as totalsize_MB, b.freesize as freesize_MB, "ALTER DATABASE DATAFILE """ || a.file_name || """ RESIZE " || round((a.totalsize - b.freesize) + 200) || "M;" as "alter datafile" from (select a.file_name, a.file_id, a.tablespace_name, a.bytes / 1024 / 1024 as totalsize from dba_data_files a) a, (select b.tablespace_name, b.file_id, sum(b.bytes / 1024 / 1024) as freesize from dba_free_space b group by b.tablespace_name, b.file_id) b where a.file_id = b.file_id and b.freesize > 100 and a.tablespace_name in ("TBS_LOG_DATA") order by a.tablespace_name
将上一步的 alter datafile语句拷贝出来执行:

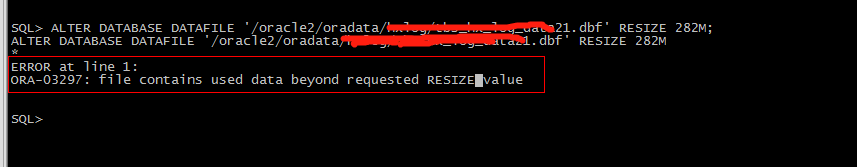

有部分报错:
ORA-03297: file contains used data beyond requested RESIZE value
因为我使用的是truncate,理论上不会受高水位的影响,在网上找了几个博客,也是说要降低表的高水位,清理表碎片。
select "alter table "||t.TABLE_NAME||" enable row movement;", "alter table "||t.TABLE_NAME||" shrink space cascade;" from user_tables t where t.TABLE_NAME like "LOG%";
清理完碎片之后,重新执行,依旧报错。
select "drop table "|| t.TABLE_NAME ||"purge;" from user_tables t where t.TABLE_NAME like "LOG%";
drop掉表之后,重新执行,依旧报错。
万能的itpub上有个博客:
Truncate table 或者 drop table 收缩数据文件,经常遇到ORA-03297: file contains used data beyond requested RESIZE value 查询dba_free_space 也有空闲空间。经过查询MOS(Doc ID 1029252.6)得知
If you have a large extent in the middle of a datafile, and some object taking up room at the end of the datafile, you can use the query FINDEXT.SQL below to find this object. If you export this object, then drop it, you should then free up contiguous space at the end of your datafile so you will be able to resize it smaller.
Make sure you leave enough room in the datafile for importing the object back into the tablespace.
意思是说如果空闲的extent如果在文件的中间,此时无法进行resize ,必须把尾部的object drop 然后重建 再resize datafile。以下是本人做的测试;
[oracle@bogon ~]$ sqlplus / as sysdba SQL*Plus: Release 10.2.0.1.0 - Production on Wed Jul 31 11:10:41 2013 Copyright (c) 1982, 2005, Oracle. All rights reserved. Connected to: Oracle Database 10g Enterprise Edition Release 10.2.0.1.0 - 64bit Production With the Partitioning, OLAP and Data Mining options SQL> create tablespace test2 datafile "/u01/app/oracle/oradata/orcl/test2.dbf" size 10M autoextend on next 1M; Tablespace created. SQL> create table tab1 tablespace test2 as select * from dba_objects; Table created. SQL> select file#,name,bytes/1024/1024 bytes from v$datafile where name like "%test2%"; FILE# NAME BYTES ----- ------------------------------------------------------------ ----- 23 /u01/app/oracle/oradata/orcl/test2.dbf 11 SQL> create table tab2 tablespace test2 as select * from dba_objects; Table created. SQL> select file#,name,bytes/1024/1024 bytes from v$datafile where name like "%test2%"; FILE# NAME BYTES ----- ------------------------------------------------------------ ----- 23 /u01/app/oracle/oradata/orcl/test2.dbf 21 SQL> select SEGMENT_NAME,FILE_ID,EXTENT_ID,BLOCK_ID,blocks from dba_extents where file_id=23 order by BLOCK_ID; SEGMENT_NA FILE_ID EXTENT_ID BLOCK_ID BLOCKS ---------- ---------- ---------- ---------- ---------- TAB1 23 0 9 8 TAB1 23 1 17 8 TAB1 23 2 25 8 TAB1 23 3 33 8 TAB1 23 4 41 8 TAB1 23 5 49 8 TAB1 23 6 57 8 TAB1 23 7 65 8 TAB1 23 8 73 8 TAB1 23 9 81 8 TAB1 23 10 89 8 SEGMENT_NA FILE_ID EXTENT_ID BLOCK_ID BLOCKS ---------- ---------- ---------- ---------- ---------- TAB1 23 11 97 8 TAB1 23 12 105 8 TAB1 23 13 113 8 TAB1 23 14 121 8 TAB1 23 15 129 8 TAB1 23 16 137 128 TAB1 23 17 265 128 TAB1 23 18 393 128 TAB1 23 19 521 128 TAB1 23 20 649 128 TAB1 23 21 777 128 SEGMENT_NA FILE_ID EXTENT_ID BLOCK_ID BLOCKS ---------- ---------- ---------- ---------- ---------- TAB1 23 22 905 128 TAB1 23 23 1033 128 TAB1 23 24 1161 128 TAB2 23 0 1289 8 TAB2 23 1 1297 8 TAB2 23 2 1305 8 TAB2 23 3 1313 8 TAB2 23 4 1321 8 TAB2 23 5 1329 8 TAB2 23 6 1337 8 TAB2 23 7 1345 8 SEGMENT_NA FILE_ID EXTENT_ID BLOCK_ID BLOCKS ---------- ---------- ---------- ---------- ---------- TAB2 23 8 1353 8 TAB2 23 9 1361 8 TAB2 23 10 1369 8 TAB2 23 11 1377 8 TAB2 23 12 1385 8 TAB2 23 13 1393 8 TAB2 23 14 1401 8 TAB2 23 15 1409 8 TAB2 23 16 1417 128 TAB2 23 17 1545 128 TAB2 23 18 1673 128 SEGMENT_NA FILE_ID EXTENT_ID BLOCK_ID BLOCKS ---------- ---------- ---------- ---------- ---------- TAB2 23 19 1801 128 TAB2 23 20 1929 128 TAB2 23 21 2057 128 TAB2 23 22 2185 128 TAB2 23 23 2313 128 TAB2 23 24 2441 128
50 rows selected.
Block_id 是连续的
SQL> truncate table tab1 2 ; Table truncated. SQL> select * from dba_free_space where file_id=23; TABLESPACE_NAME FILE_ID BLOCK_ID BYTES BLOCKS RELATIVE_FNO -------------------- ---------- ---------- ---------- ---------- ------------ TEST2 23 17 ########## 1272 23 TEST2 23 2569 ########## 120 23
有原来tab1 的free blocks 1272
SQL> alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 12M; alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 12M * ERROR at line 1: ORA-03297: file contains used data beyond requested RESIZE value
无法进行resize
下面把tab1 drop 再测试
SQL> drop table tab1 purge; Table dropped. SQL> alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 12M; alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 12M * ERROR at line 1: ORA-03297: file contains used data beyond requested RESIZE value
依然报错
然后truncate tab2 再进行测试
SQL> truncate table tab2; Table truncated. SQL> select * from dba_free_space where file_id=23; TABLESPACE_NAME FILE_ID BLOCK_ID BYTES BLOCKS RELATIVE_FNO -------------------- ---------- ---------- ---------- ---------- ------------ TEST2 23 9 ########## 1280 23 TEST2 23 1297 ########## 1392 23 SQL> alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 12M; Database altered. SQL> alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 6M; alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 6M * ERROR at line 1: ORA-03297: file contains used data beyond requested RESIZE value
此时只能收缩 tab2 的空间 但是不能收缩 tab1的空间
然后再drop tab2
SQL> drop table tab2 purge 2 ; Table dropped. SQL> alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 6M; Database altered. SQL> alter database datafile "/u01/app/oracle/oradata/orcl/test2.dbf" resize 1M; Database altered.
可以收缩tab1的空间
note:
收缩数据文件和两个因素有关
1 降低高水位
2 free extent在datafile 的尾部
本篇文章直接解释了第二个
如果空闲的extent如果在文件的中间,此时无法进行resize ,必须把尾部的object drop 然后重建 再resize datafile。
也就是说同时期该用户下其它表的写入,也在这个数据文件下,那么就不能进行resize。
把其它表移动到users表空间:
select "alter index "||index_NAME||" rebuild tablespace users;" from user_indexes where TABLE_NAME not like "LOG_%"; select "alter table "||TABLE_NAME||" move tablespace users;" from user_tables where TABLE_NAME not like "LOG_%";
再次运行压缩空间,成功
2.6 查看压缩的空间
可以看到一下子多出了2.1T 的空间
收缩空间运行速度还不错,50多个数据文件,几分钟就压缩完成。
